CleanForm technology

Clean performance - Precise and reliable

Product information

Complete production cells consisting of injection molding machine and automation for the most demanding requirements of the medical and pharmaceutical industries.
KraussMaffei is the only manufacturer worldwide of injection molding machines in class 5 (DIN EN ISO 14644-1) or GMP class A that has been implemented multiple times in production.
We have decades of experience, expertise, and a network, making us the ideal partner for implementing your cost-effective solution in the medical/pharmaceutical industry.

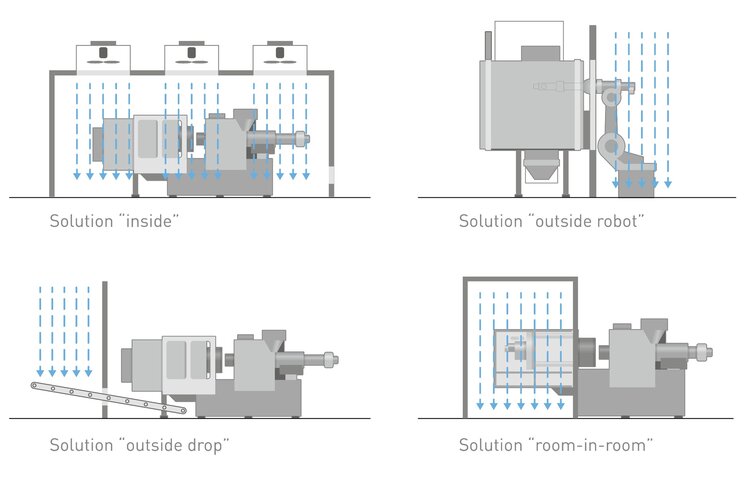

GMP- conform production cells including qualification and validation
Realization of particularly high cleanroom classes:
Class 5 (DIN EN ISO 14644-1) / GMP A
Highest productivity caused by best stable and process capability
Maximum flexibility thanks to a wide range of options
True documentation provided by our digital solutions and interfaces (OPC UA)

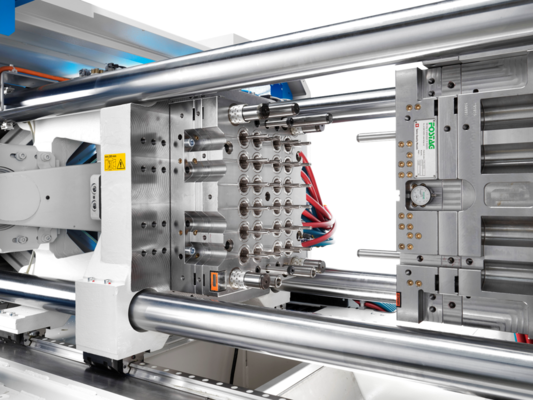

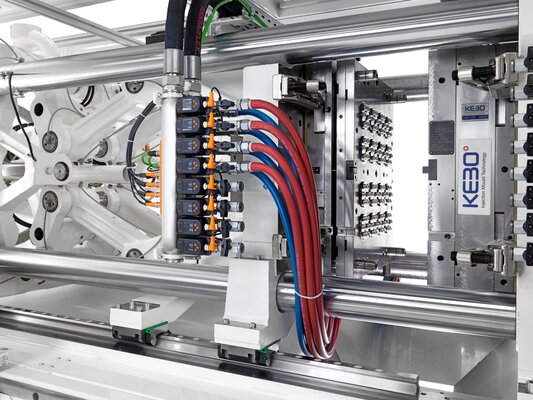

Clamping unit

Large sprue plates enable a high number of cavities
Clean, lubricant-free clamping unit
Excellent accessibility to the clamping unit and ejector
Low energy consumption thanks to linear guidance

Injection unit

Highest and consistent component quality due to:

Optimal melt quality thanks to a wide range of KraussMaffei injection units and screw diameters

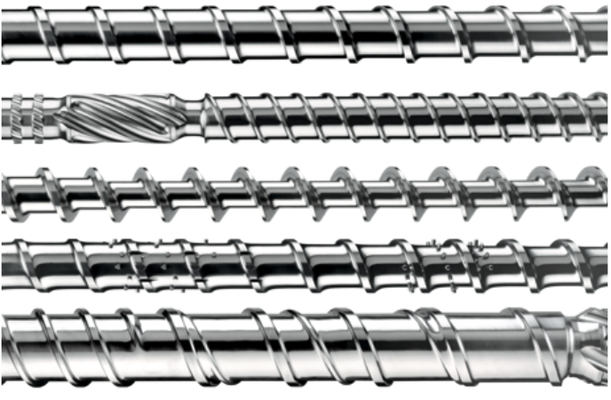

Different screw geometries, coatings, and surface treatments for a wide variety of materials
Wide range of injection speeds
Encapsulated nozzle areas

Integrated mold cooling

100% integration into machine control
Temperature, pressure, and volume flow are recorded, monitored, and documented
Space-saving and low-maintenance solution
Optional maintenance-free solution available

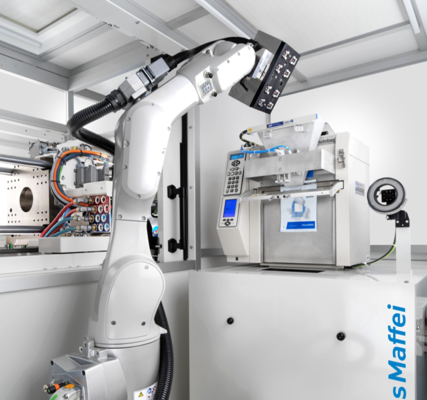

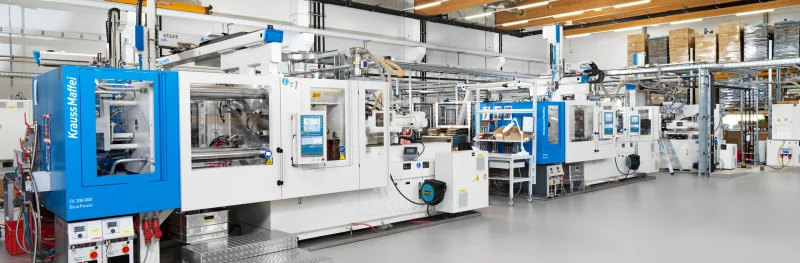

Production cells

Can be combined with linear and industrial robots
Clean, lubricant-free environment
Process sequences from picking and placing to complex follow-up steps (e.g., weighing, cavity-sorted storage)
Space-optimized compact production cells
Smart integration of automation in machine controll

Any questions? Our experts will be happy to advise you.

Contact

Extensions

Combination options CleanForm technology

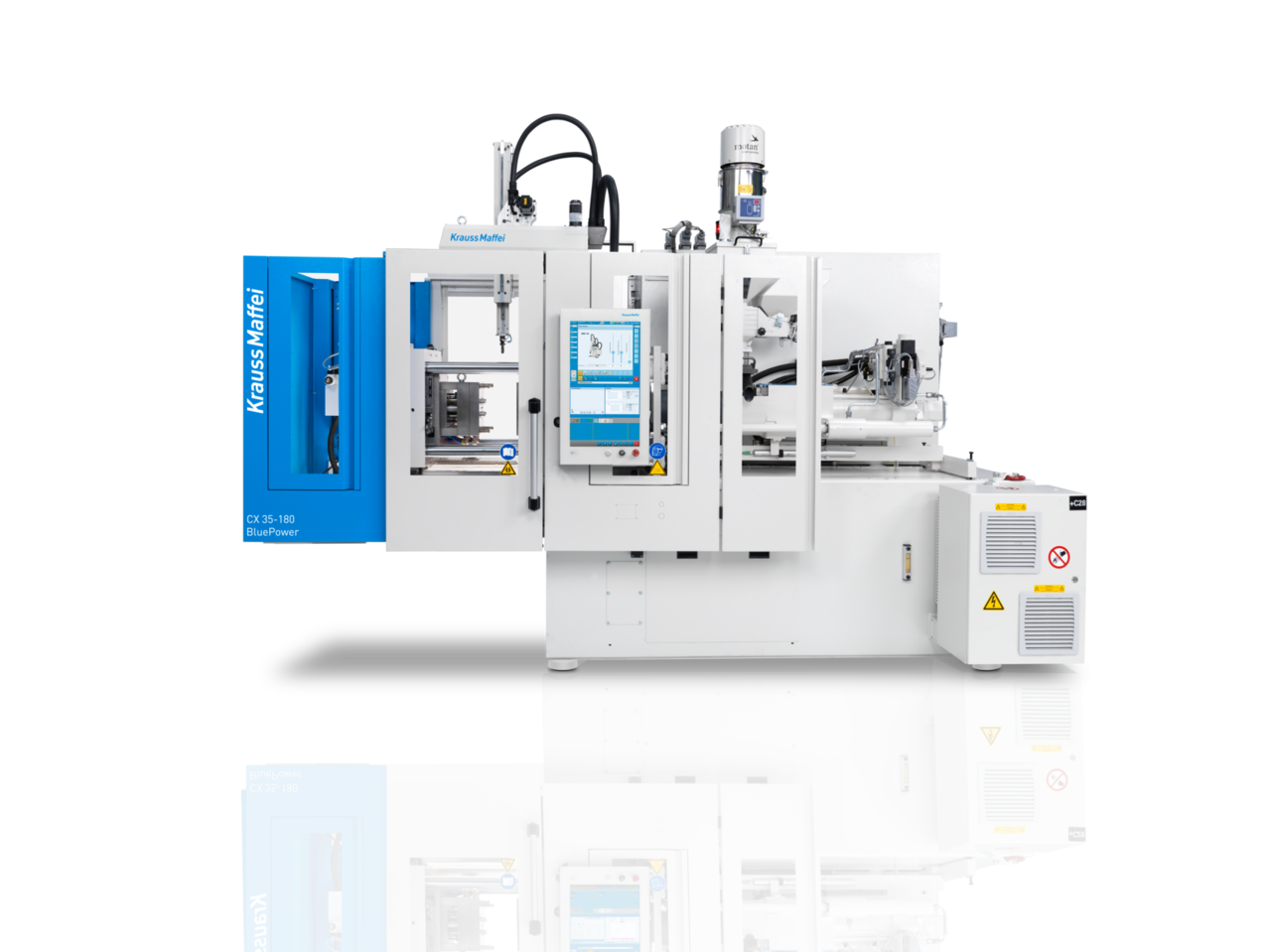

CX series (500 - 4,200 kN)

Each machine can be upgraded individually: In the fully hydraulic CX series, KraussMaffei offers outstanding compact, efficient and flexible technology and provides the basis for expansion with all available injection molding processes.

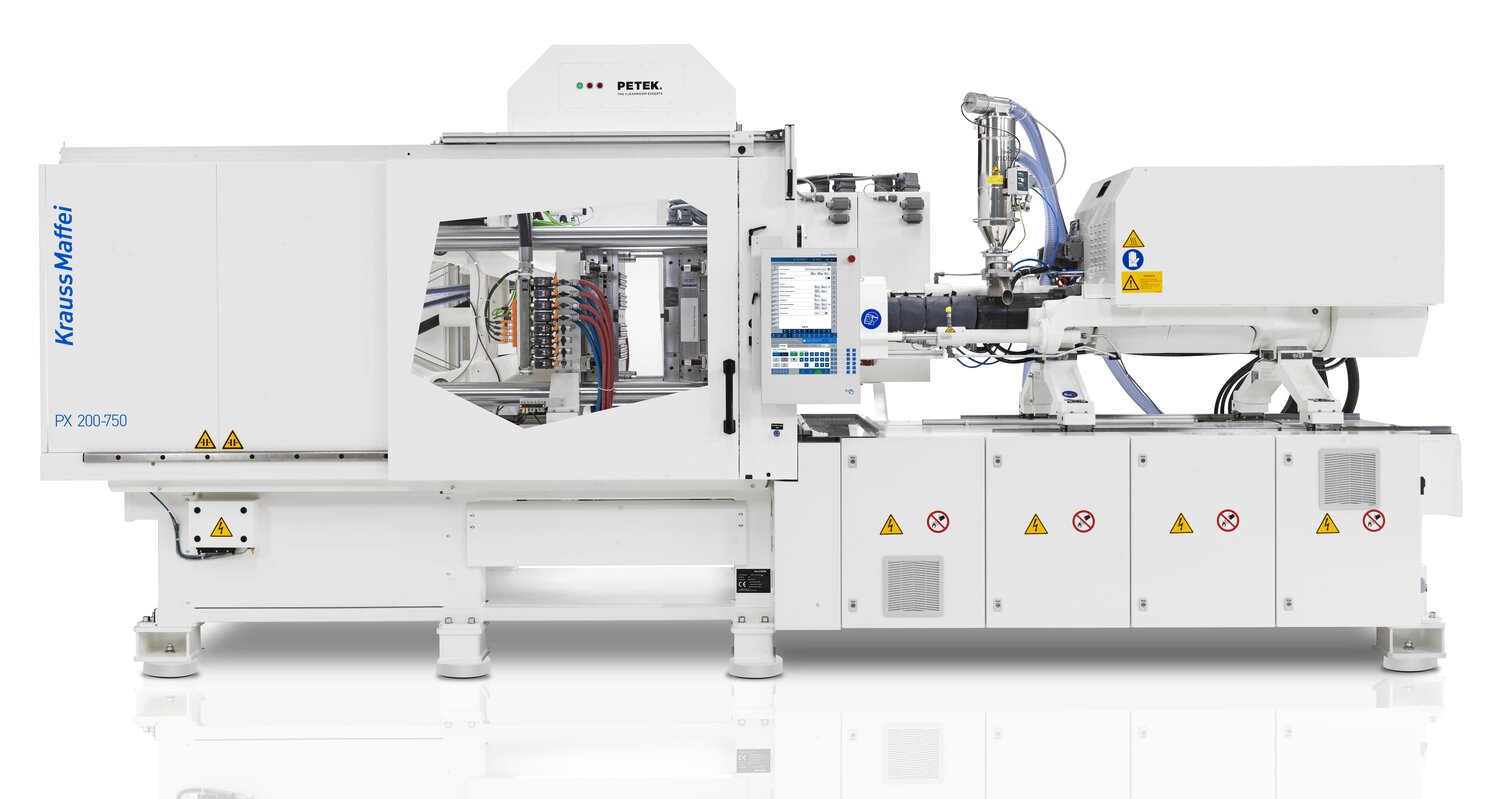

New PX series (800 - 2,000 kN)

The new PX series is a forward-looking solution for sustainable, compact, and productive injection molding. The expanded modular system allows you to order the PX that perfectly fits your production requirements.

PX series (500 - 4,000 kN)

The PX series is the answer to your requests for more flexibility while increasing productivity. You can assemble your PX precisely to your production requirements from a wide selection of components based on a modular design.

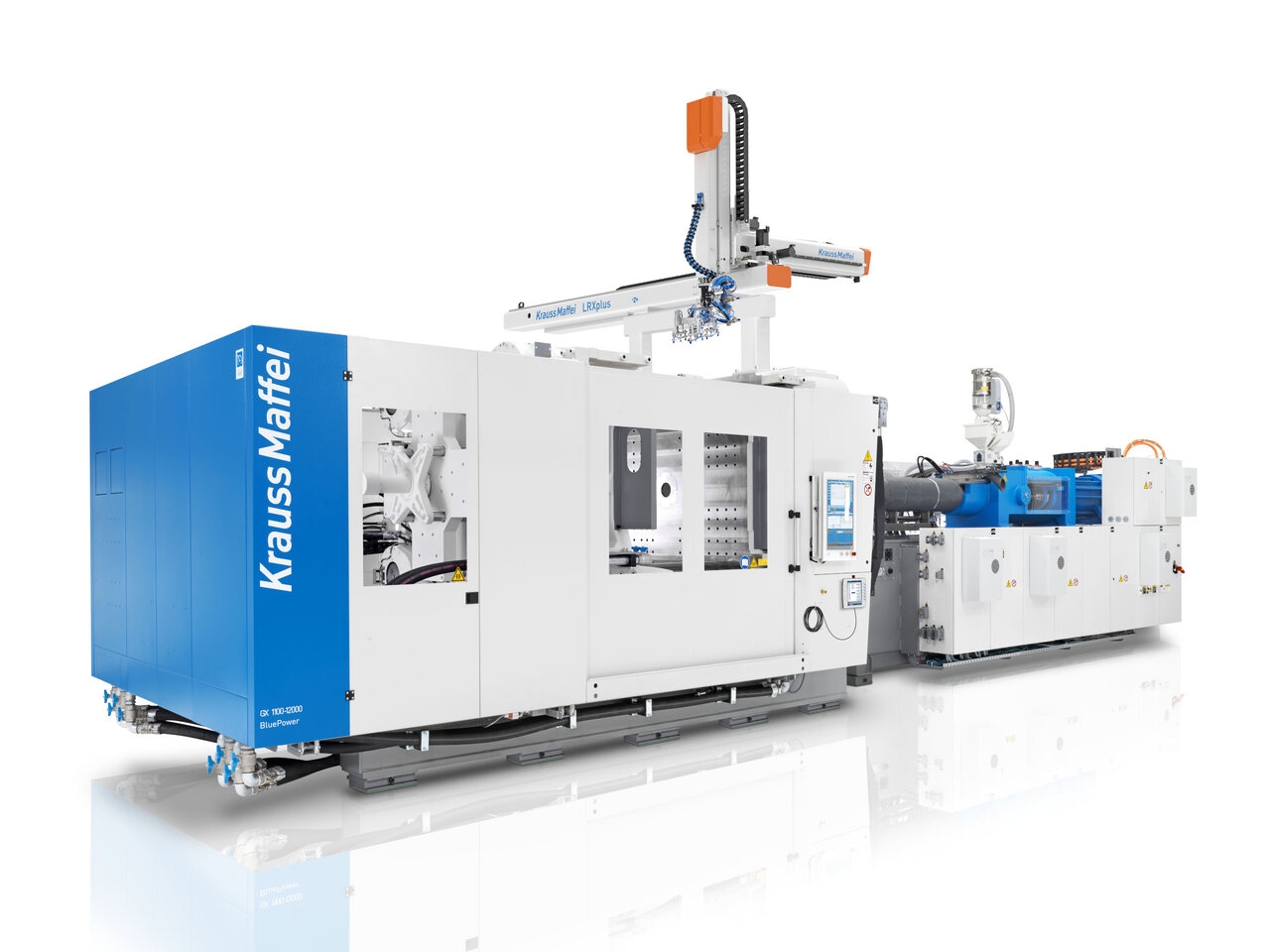

GX series (4,000 - 14,500 kN)

Benefit from the first-class hydromechanical dual platen concept of the GX Series in conjunction with the single-piston injection system. Thanks to the modular design, the compact dual platen clamping unit can be individually configured with all available injection units.
