Co-rotating twin-screw extruder (ZE BluePower)
Product information
The ZE BluePower (ZE BP) co-rotating twin-screw extruder from KraussMaffei Extrusion is designed for demanding plastics processing applications. Its modular machine concept offers flexible configuration options to meet requirements for throughput, product quality, process reliability and service. The system can be individually configured and expanded.
KraussMaffei Extrusion integrates the extruder with additional components such as feeders, vacuum pumps, melt filters, granulators and extrusion heads to create a complete processing system. The system is complemented by pioneeringprocessControl (ppC), a control system specifically developed for the extrusion industry.
Performance data
Sizes: 28, 42, 52, 65, 80, 98, 122, 142, 166, 186 mm
Process unit lengths 32-64 D
Torque density 16 Nm/cm³
Why our product stands out
- Diameter ratio Da/Di 1.65 - 100% geometric scalability from ZE28BP to ZE186BP
- Pre-tensioned screws
- Maximum modularity in screws and housings - abrasion and corrosion protection
- Intuitive and customizable control visualization (HMI) – for easy machine operation
- Optional features: High-temperature, gas-tight design, remote maintenance, gearbox condition monitoring, tempered oil process unit, UltraGlide system for easy screw removal
Variants

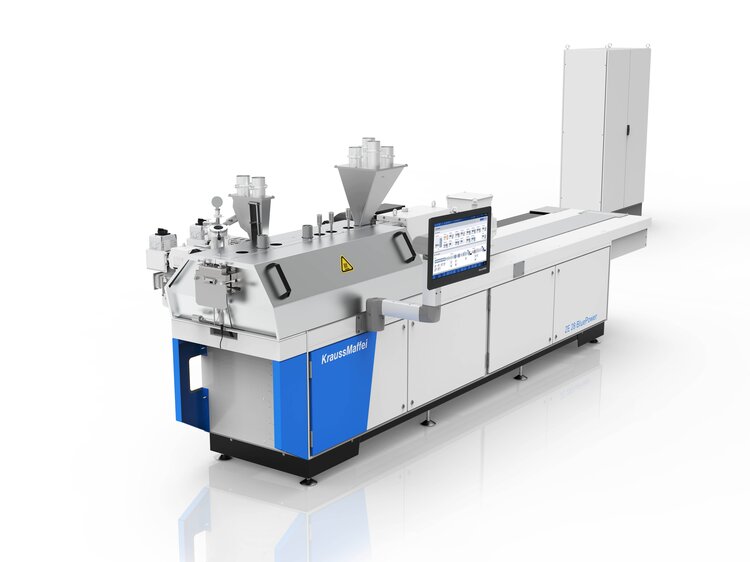

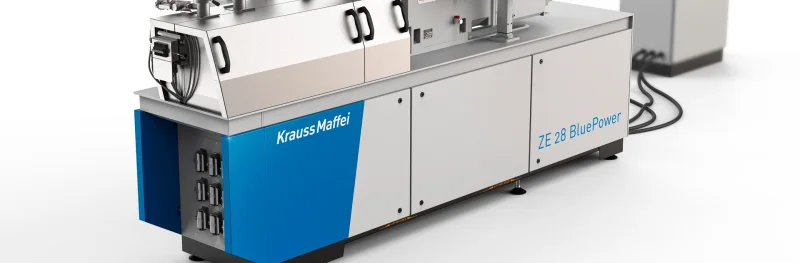

ZE 28 BluePower (Laboratory Extruder)
The ZE 28 BP is the laboratory model among our extruders, designed with a compact build and practical features. With a torque density of 13.6 Nm/cm³, up to 1200 RPM, the electrical UltraGlide system, and a strand head with quick-change nozzles, it offers maximum flexibility. Smooth surfaces allow easy cleaning, and up to 4 SideFeeders can be integrated.

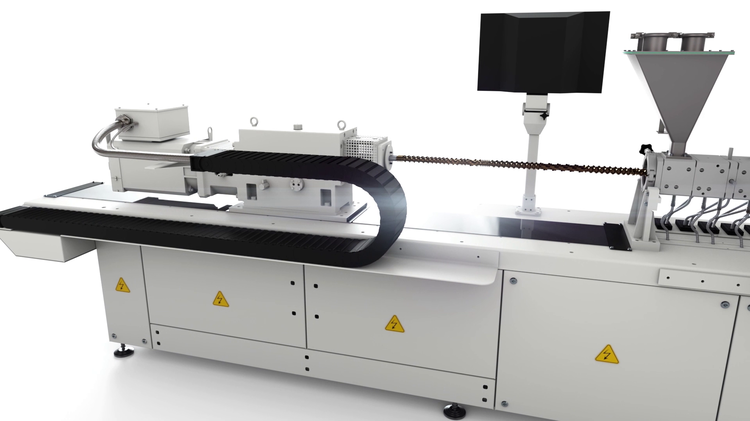

UltraGlide
The UltraGlide technology allows an easy screw removal and disassembly in the direction of the powertrain. Available for sizes 28–166 (28: electric), it enables convenient movement of the powertrain in two directions for sizes 42–166, ensuring fast access and simple rear disassembly of the screws.

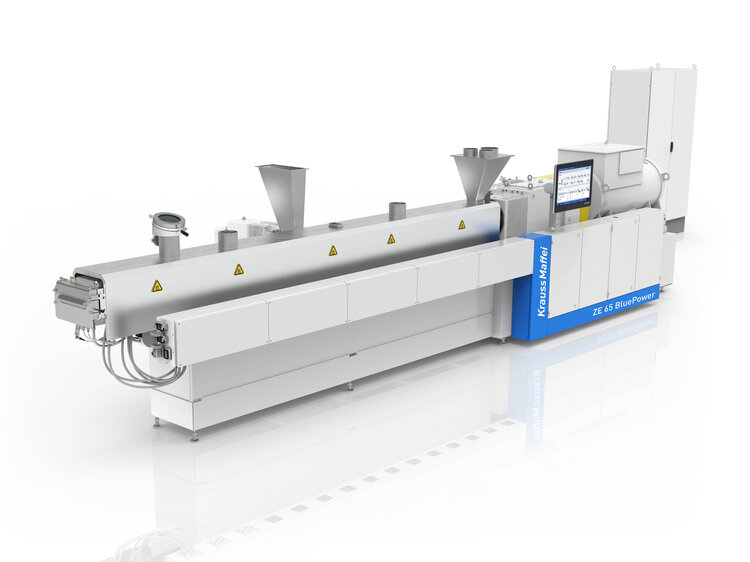

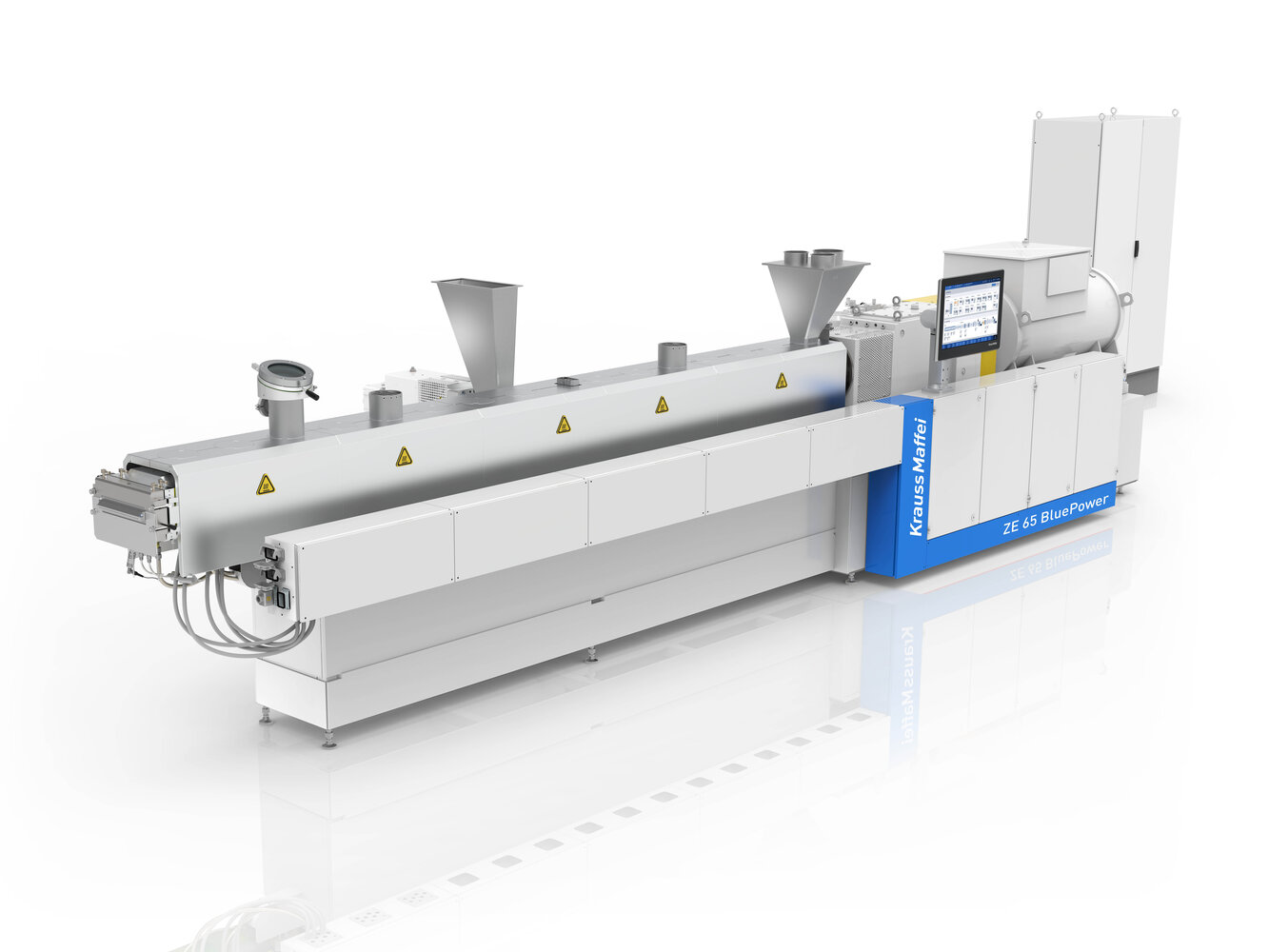

ZE 42, 52, 65 & 80 BluePower
The midsized extruders are for all typical compounding and recycling applications. These extruders offer you a torque density of 16 Nm/cm3 and maximum RPM of 1200 1/min. Smooth surfaces allow easy cleaning and up to 4 sidefeeders can be integrated.

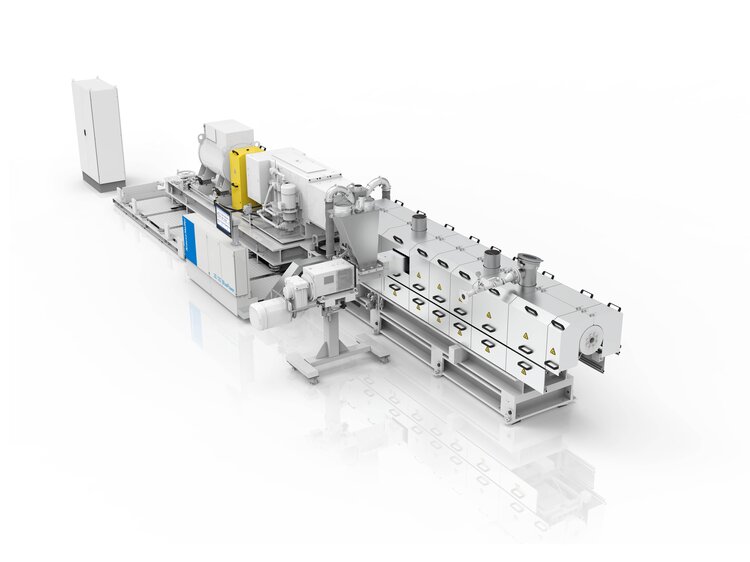

ZE 98, 122, 142, 166 & 186 BluePower
The large extruders are for high throughput compounding and recycling applications. In addition these extruders are commonly used in foam and sheet applications. These extruders offer you a torque density of 16 Nm/cm3 and a high RPM. Smooth surfaces allow easy cleaning and up to 4 sidefeeders can be integrated.
