LRXplus Twin Linear Robot (50 kg - 100 kg)

Maximum flexibility in minimum space

Product information

The LRXplus Twin combines two linear robots on a common axis and enables parallel processes for higher productivity and reduced cycle times.

Small footprint
Fast removal for short cycle times
Support for four robots with six axes each (max. 24 axes)
Easy process synchronization for overlapping processes

Variants

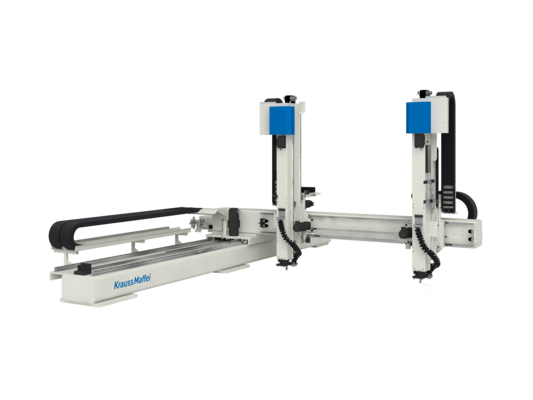

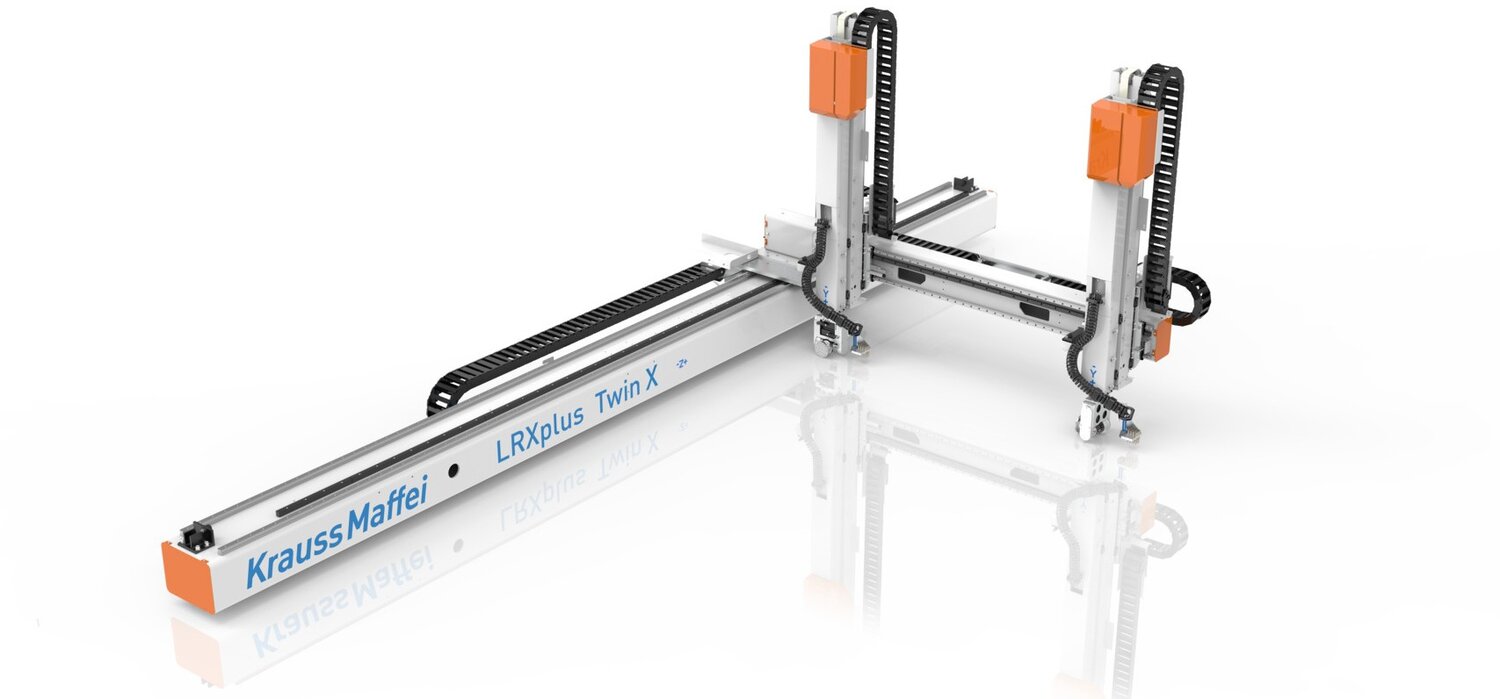

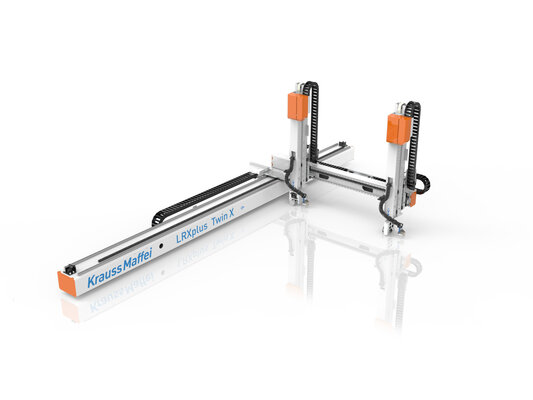

Twin X

Characteristic
Mechanically linked Y-axes on a shared X-axis

Application
Simultaneous demolding or placement process in the mold at short mold open times

Benefits
Save time when using a three-plate mold

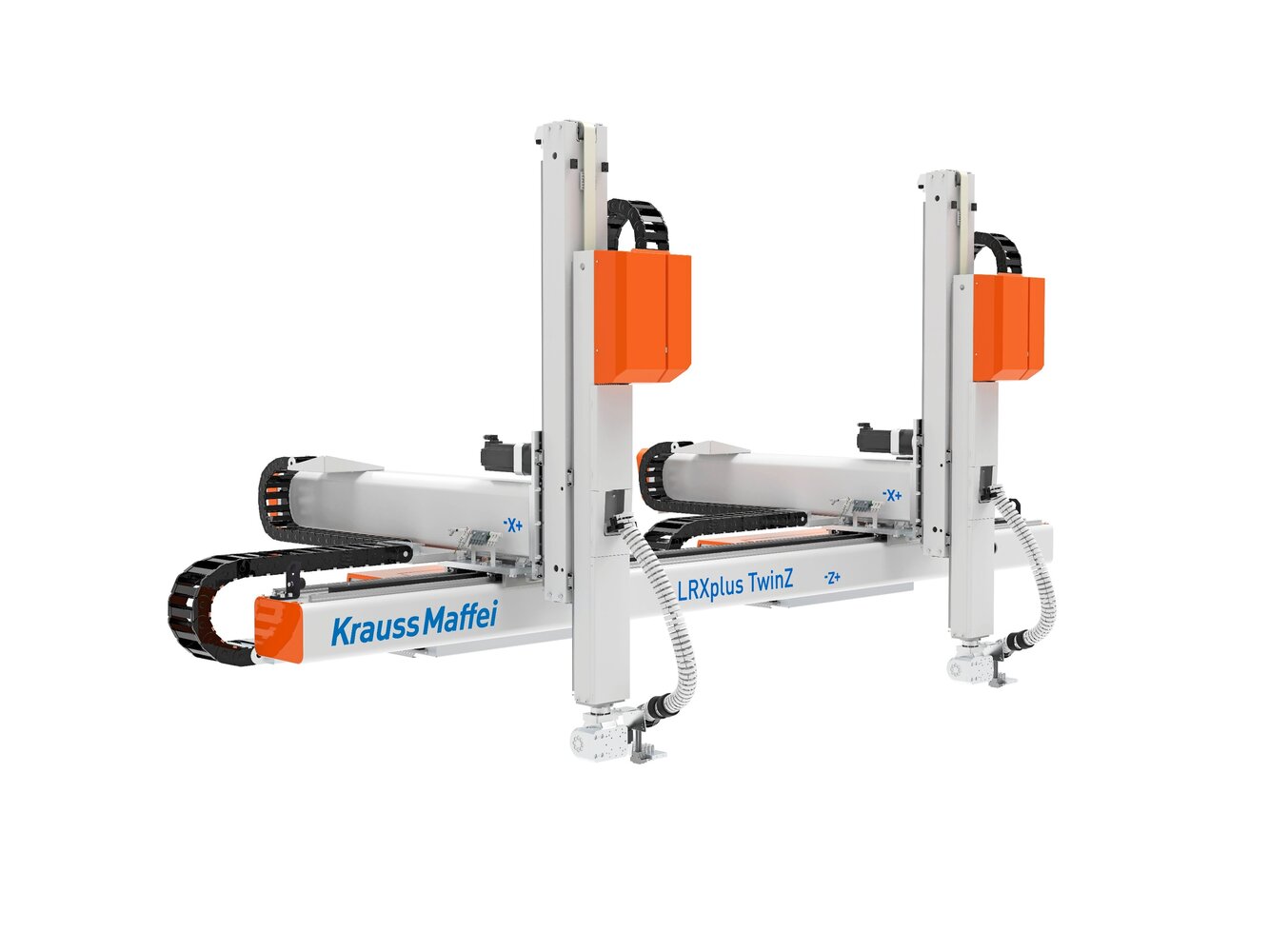

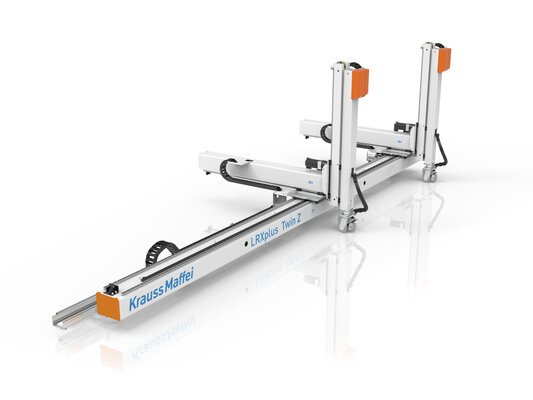

Twin Z

Characteristic
Mechanically linked X-axes on a shared Z-axis

Application
Transfer of components (handshake) during rapid component removal or stacking operations, for example for packaging, oven or pre-/post-treatment processes

Benefits
Space and time saved on automated units with overlapping motion ranges

Any questions? Our experts will be happy to advise you.

Contact
