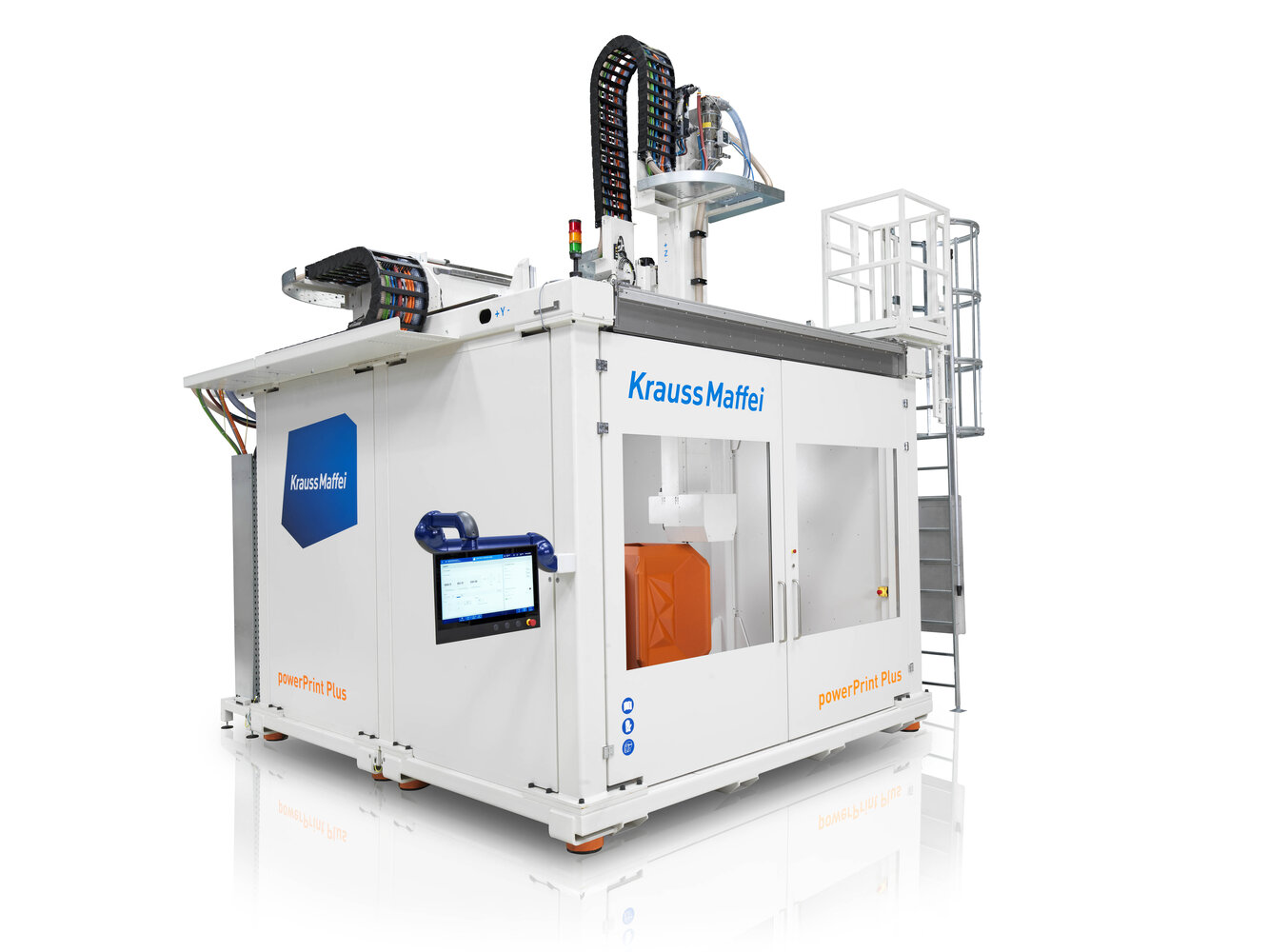

powerPrint Plus

Granule based Large Scale 3D printer

Features

Product information

The powerPrint Plus redefines industrial 3D printing: with its industry-leading productivity, it prints large-format components to industrial standards – with maximum precision and consistent product quality.

  • Large scaled components according to industrial standard
  • Maximum process stability enables Best Cost per Part
  • Efficient thermal management enables a recurring high part quality
  • Cost-effective processing of materials thanks to self-designed extruder

Key Facts

Highest component quality up to 10 m³
  • Parts up to 2m x 2.5m x 2m possible
  • Free access to the parts from above or from the front
  • Excellent surface quality achieved by milling
  • Lower raw material consumption compared to conventional milling
Best cost per part: Reliable robot axis with maximum axis accuracy
  • High processing speed and positioning accuracy
  • High quality of final contour and near-net-shape components
  • Designed for continuous operation
  • Automatic lubrication for high availability
Efficient thermal management for consistent product quality
  • Folding roof and heat-resistant enclosure
  • Closed, heat-resistant system designed for at least 60° C (140 F) chamber temperature
  • Suitable for demanding materials
  • Free access to the printing area via a crane
  • Heated printing table with up to 180°C (356°F) bed temperature and vacuum-fixed printing surface
Efficient printing processes for a variety of materials and build strategies
  • Low material costs through the use of pellets
  • High-performance thermoplastic fiber-reinforced materials
  • Tested examples : ABS, PC, PETG, PEI, PP
  • Customized compositions also possible thanks to our extensive material testing process
Specially developed printCore
  • Extruder with melt control
  • Die range from 2 mm to 20 mm available
  • Discharge rate up to 70 kg/h
  • Melting temperature up to 400° C

Sounds interesting? Then get in touch with us!
